Electric Acupuncture Stimulator Machine Patch Massager Care 5 Types of Pulse Waves Pulse Electrotherapy Acupuncture Apparatus

-There Are 5 Types of Pulse Waves to Be Selected: Continuous Wave, Dense-disperse Wave, Intermittent Wave, Ripple Wave, Respiration Wave.

-With the Characteristics of Low-pressure,Low-frequency,Bi-directional, Operating Output Protection Device,Particularly Safe Treatment.

Main Functions:

-Assists the Detection of Acupoints.

-Use for Electric Impulse Acupuncture Treatment.

-Music Prompt Function of the Electrotherapy.

-Multi-pulse Wave Frequency Lcd

-Auto-timing Switch

-Operating Output Protection Device

Specifications:

-Output Pulse Road: 6 Channels Outputs

-Input Power: ＜20va+15%; the Fuse Is Slow Fusing 0.5a

-Output Pulse Frequency:1.2hz~55hz, the Error Range of±30% Continuous Adjustable.

-Output Pulse Width: 0.6±0.15ms

-Suitable Range of Voltage of Power Supply: Ac 110~240v, 50hz; Dc 9v+5%, 9v-10%.

-Range of Atmosphere Pressure: 500hpa to 1060 Hpa.

-Size: 21.7cmx16.7cmx7.5cm

-Weight: 1390g

Features:

-Adjustable Frequency and Intensity.

-Adjustable Sensitivity Probe Point Locator.

-6 Outputs, plus 1 Detection Outlet.

Package Included:

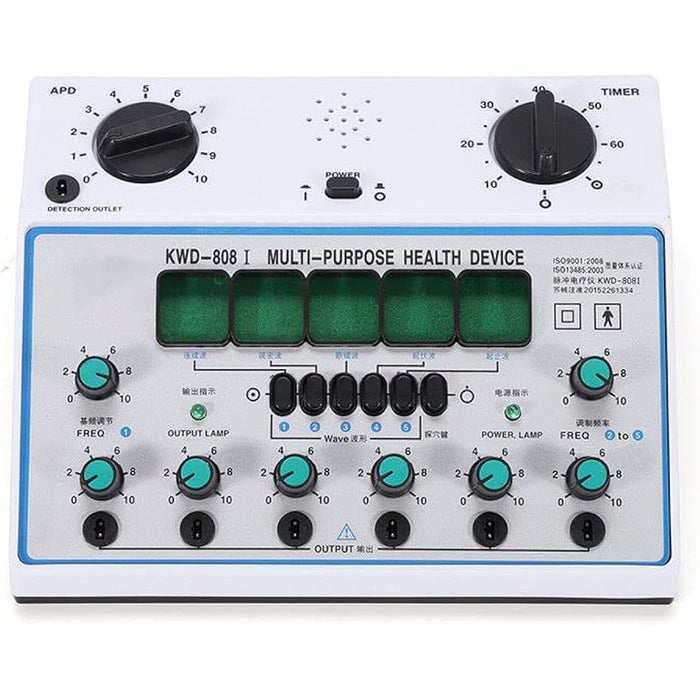

1xkwd808-I Multipurpose Health Device

1x Acupoint Detecting Pen

5x Output Electrode Wires

1x Inserting Output Electrode Wires

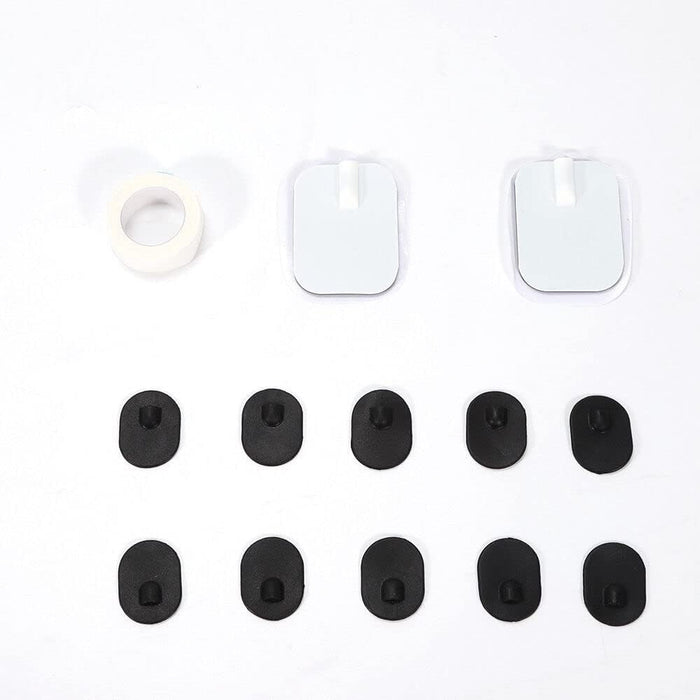

10x Small Electrode Sticker

2x Big Electrode Sticker

1x Fixed Tape

1x English Instruction Manual

1x Acupoint Figure

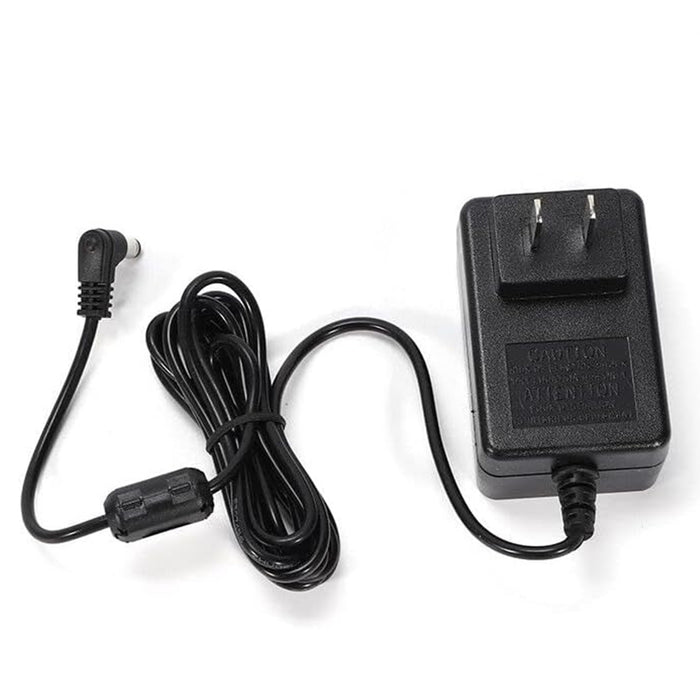

1x Ac Adaptor (100v-240v)
